The part finder is meant to make it easier to find a specific part but is not a complete list of the machines parts. To look through a machines complete part list, please click on your machine from the home page.

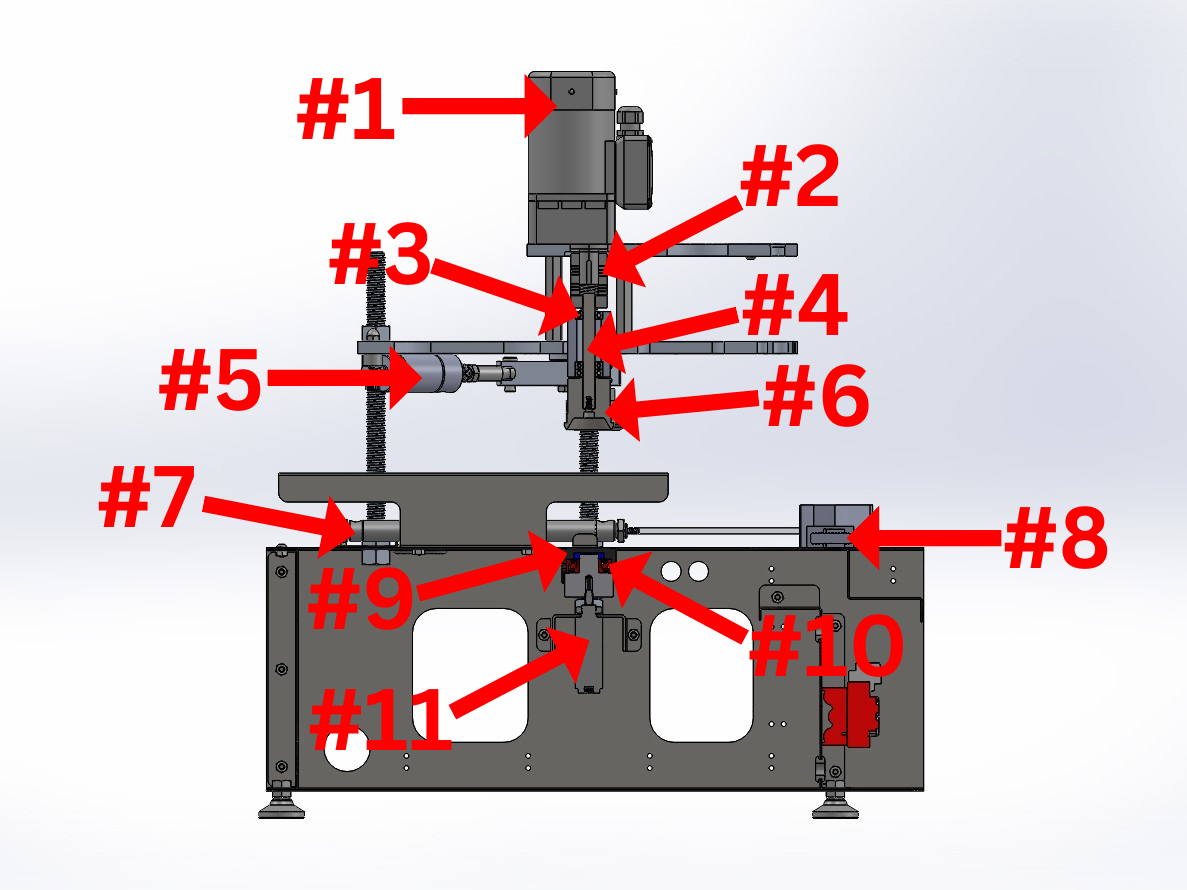

Atomic Seamer
-
-
-

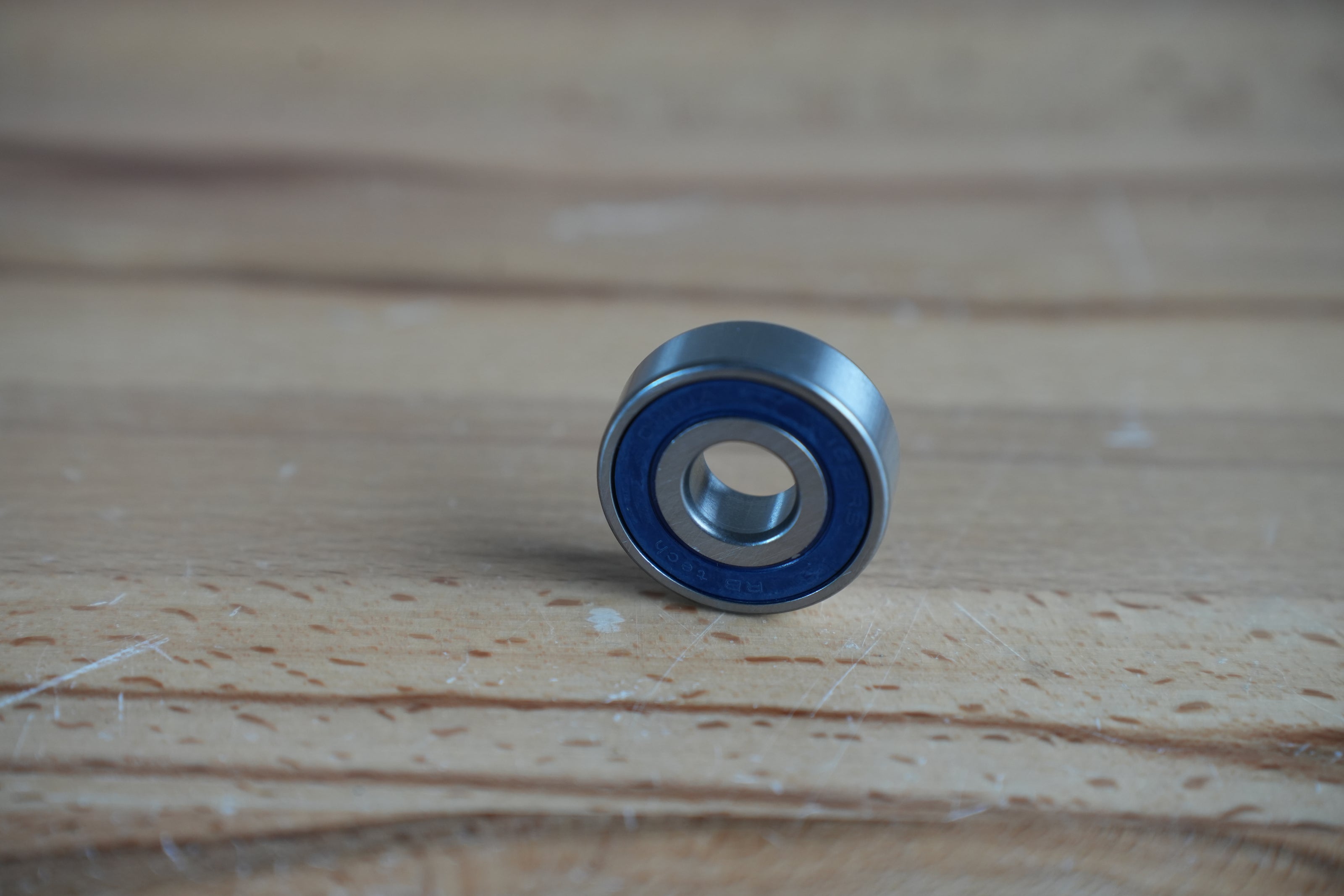

#3 Seamer Chuck Bearing
Find your part hereThis bearing ensures that the chuck spins smoothly and concentric.
-
#4 Chuck Shaft
Find your part hereThe seamer chuck shaft attaches to the chuck and the motor coupler.
-
#5 Operation Cylinder
Find your part hereThis air cylinder connects the the operation arm and drives the operations into the chuck.
-
-
-
#8 Filler Ready Sensor
Find your part hereSensor that detects when the last can has entered the filler area.
-
#9 Lift Puck
Find your part hereThe lift puck is essential to lifting cans up straight and aligned to the chuck.
-
-
#11 Lift Puck Cylinder
Find your part hereThe cylinder that connects to the seamer lift puck assembly.
-
CO2 Valve
Find your part hereThis valve controls when CO2 is dispensed. There is one for the can purge and one for under cap gas.
-
-

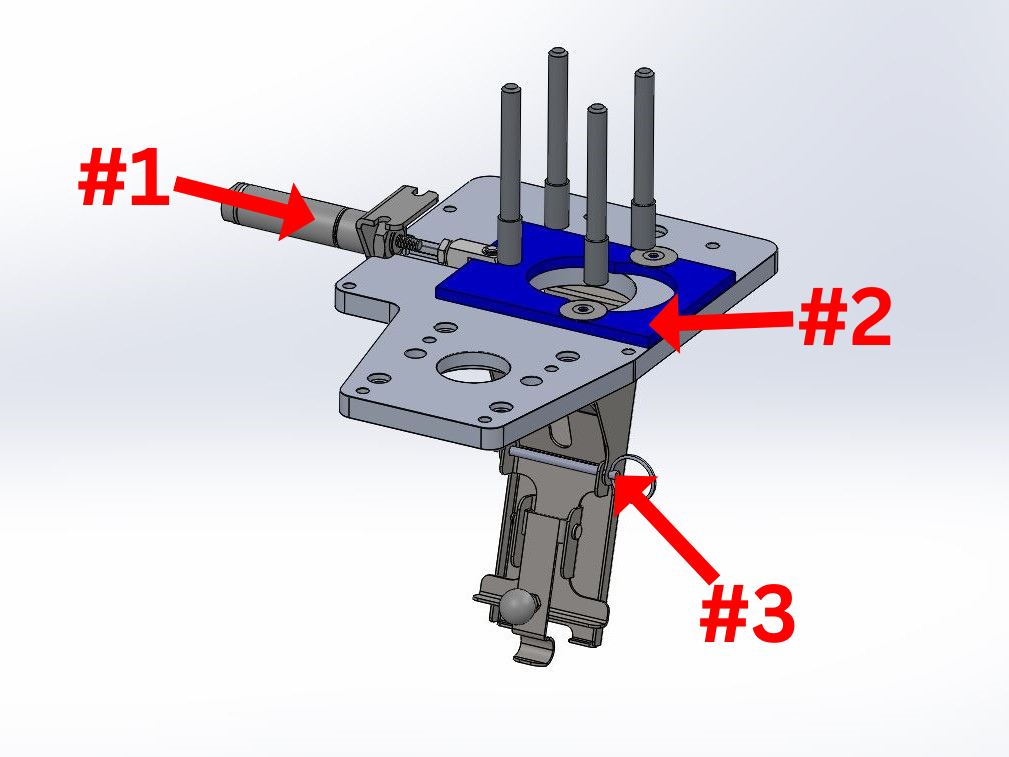

MC-ATOMIC Cap Shedder

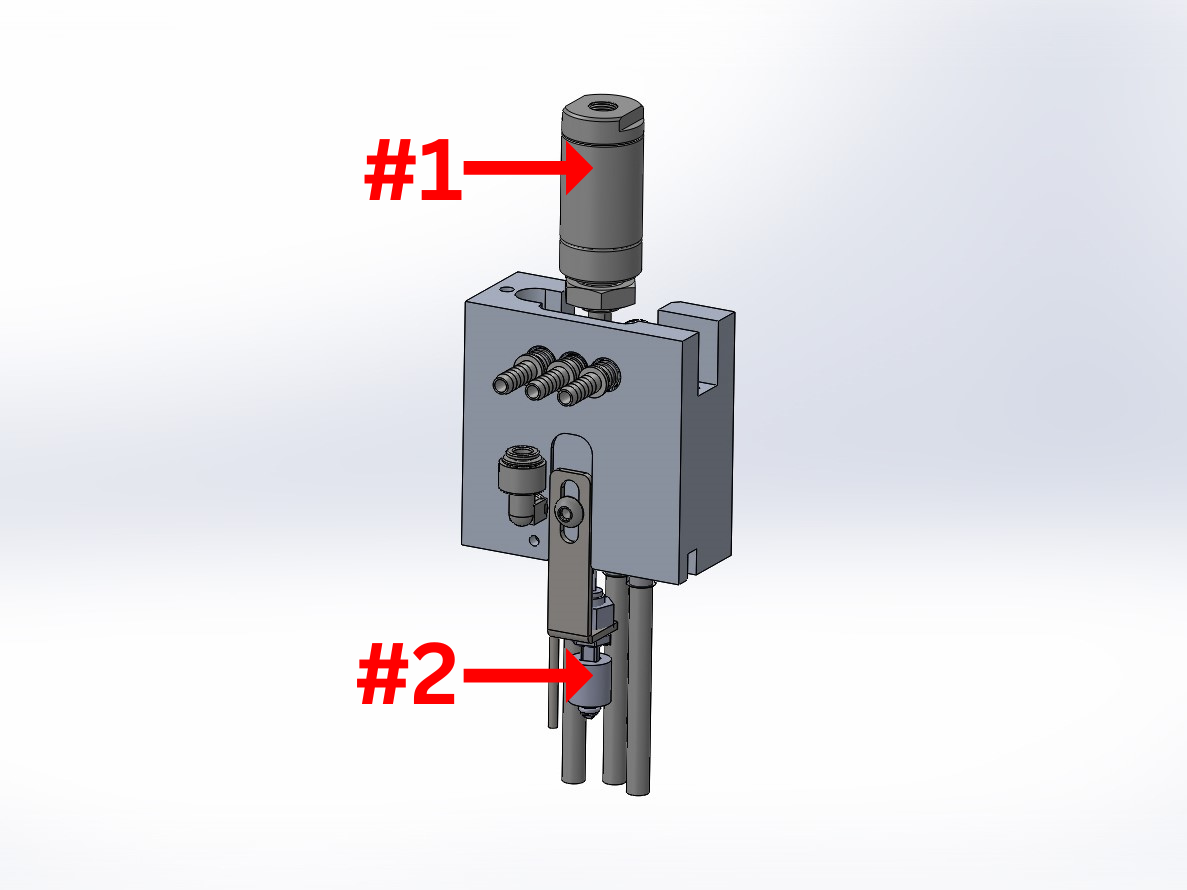

MC-ATOMIC Filler Head
-
#1 Filler Pinch Cylinder
Find your part hereThis cylinder extends onto the pinch tubes shutting off the flow of product.
-
-
-
-
-
