The part finder is meant to make it easier to find a specific part but is not a complete list of the machines parts. To look through a machines complete part list, please click on your machine from the home page.
Craft Seamer
-
-
#2 Flexible Motor Coupler
Find your part hereThis motor coupler connects the motor to the chuck shaft.
-
#3 Sealed Seamer Bearing
Find your part hereThis bearing ensures that the chuck spins smoothly and concentric.We recommend buying two.
-
#3 Tapered Roller Bearing
Find your part hereComes with races to fully refresh your chuck bearings. We recommend buying two.
-
#4 Chuck Shaft
Find your part hereHaving a smooth and concentric shaft is vital to ensure a quality seam.
-
#5 Operation Cylinder
Find your part hereThis air cylinder connects the the operation arm and drives the operations into the chuck.
-
#6 Cap in Place Sensor
Find your part hereMounted on the foam rail, this sensor detects when a lid is in place on top of a can.
-
-
#8 Can In Place Sensor
Find your part hereThis sensor detects if a can is in postion under the seamer
-
#9 Lift Puck
Find your part hereThe lift puck is essential to lifting cans up straight and aligned to the chuck.
-
-
#11 Lift Puck Cylinder
Find your part hereThe cylinder that connects to the seamer lift puck assembly.
-
-
-
-

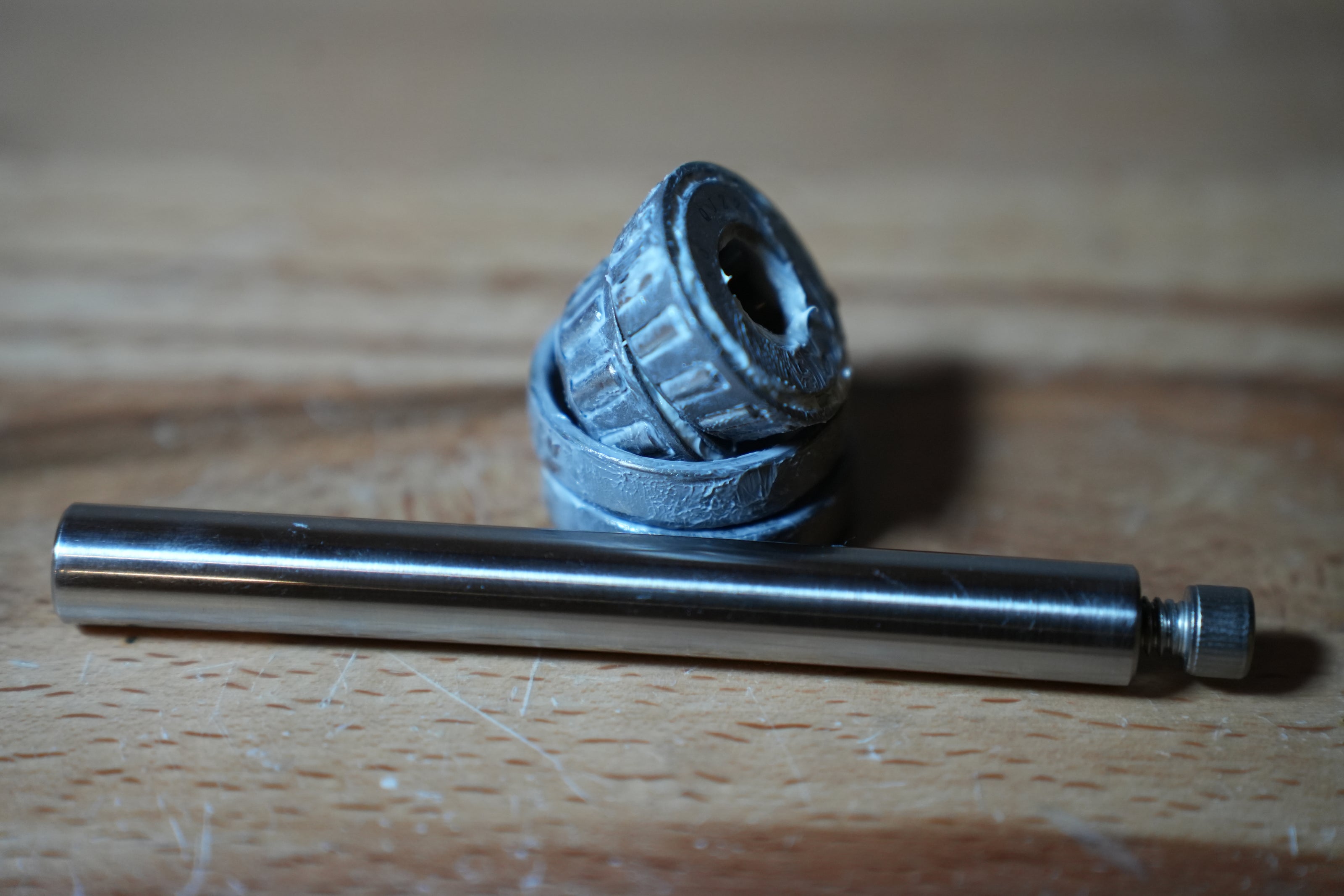

Sealed Bearing Kit
Find your part hereThis replacement kit will allow you to refresh your chuck bearings. It includes two bearings, a chuck shaft and the screw to mount and secure your chuck to the shaft.
-
Tapered Roller Bearing Kit
Find your part hereThis replacement kit will allow you to refresh your chuck bearings. It includes two bearings, a chuck shaft and the screw to mount and secure your chuck to the shaft.

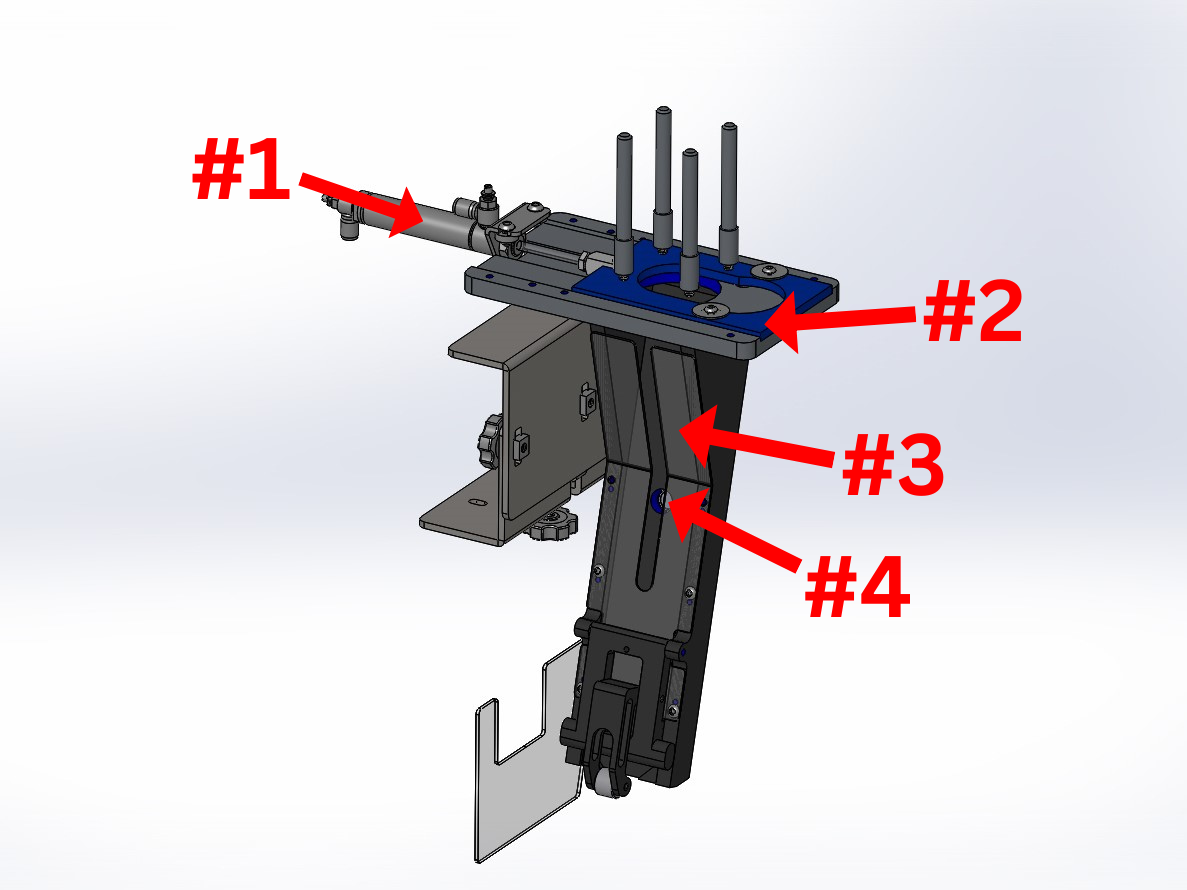

Craft Cap Shedder

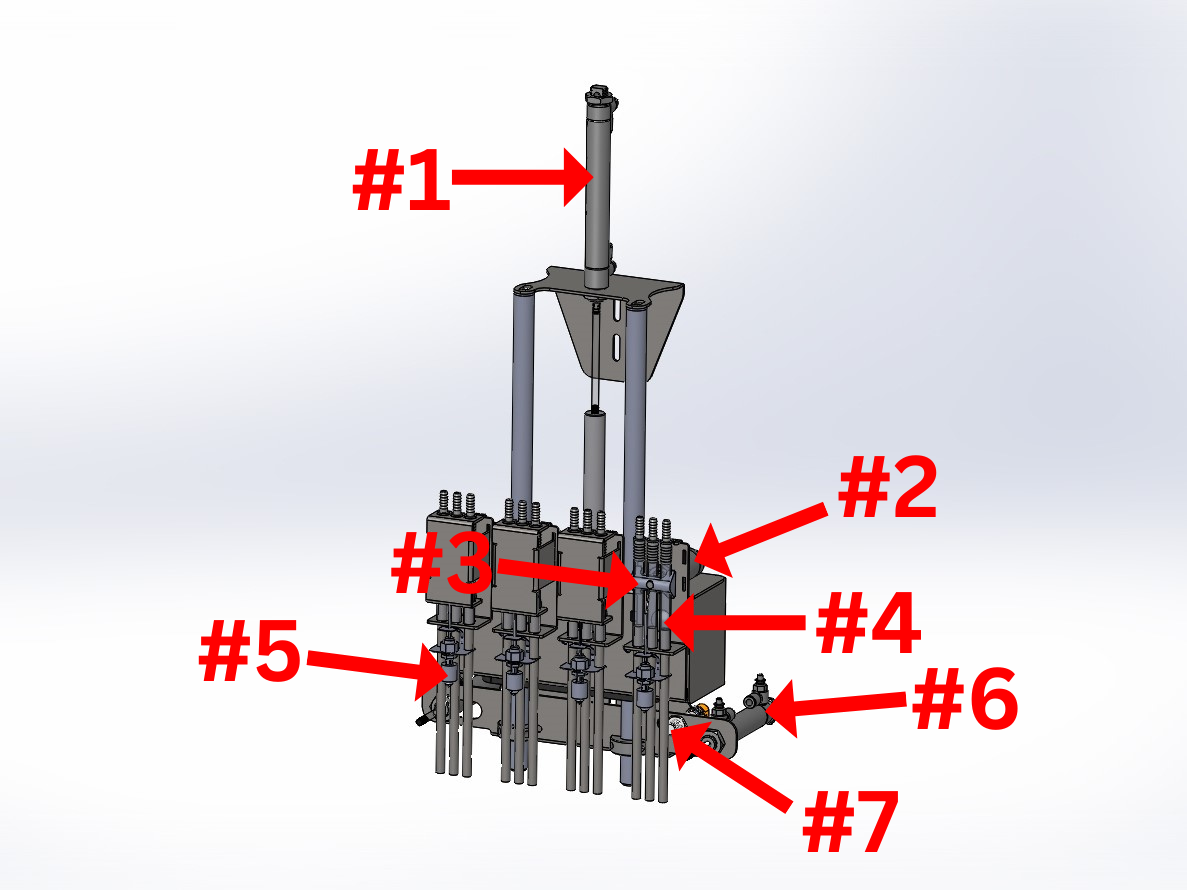

CRAFT Filler Head
-
-
#2 Gen 2 Pinch Cylinder
Find your part hereThis cylinder stops the flow of product. Gen 2 Fillers only!
-
#3 Gen 2 Pinch Bar Upgrade
Find your part hereUpgrade your pinch bar for extra reliability. Gen 2 Fillers only!
-
-
-
-
#6 Gate Cylinder
Find our part hereThese cylinders manage the flow of cans in and out of the filler head
-
-
CO2 Valve
Find our part hereThis valve controls when CO2 is dispensed. There is one for the can purge and one for under cap gas.

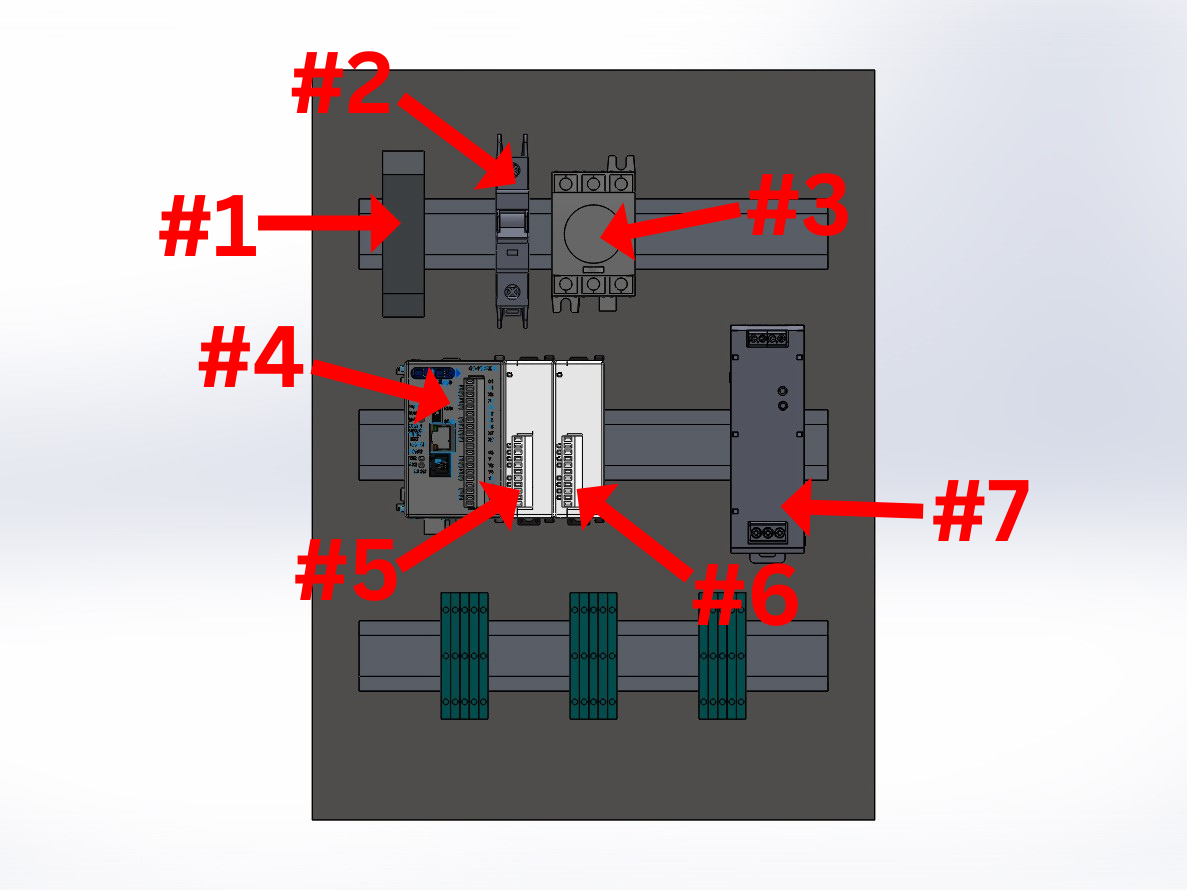

MC-CRAFT Control Panel
-
#1 Safety Relay
Find your part hereThe safety relay is responsible for providing safe power to the panel and shutting power off to select systems when e-stopped.
-
#2 Panel Breaker
Find your part hereThis component will stop power flow in the event of a short going into the panel.
-
-
#4 PLC Control Unit
Find your part hereThe PLC is considered the "brain" of the machine. For programming instructions, please contact a Microcanner Technician
-
-
-
